CAL-KIT (CAL-EDGE-8 + Precision sensors + Explorer case)
CAL-KIT (CAL-EDGE-8 + Precision sensors + Explorer case)
Couldn't load pickup availability
CAL-KIT (click to learn more) is a comprehensive package designed for advanced data logging, leak detection, and system monitoring in compressors. With 5 free CALMS Audit Subscription Plan B credits users can monitor, analyze, and manage their systems in real-time, from anywhere, at any time. This kit provides a complete solution for data logging, real-time monitoring, and maintenance of compressor systems, thereby improving system efficiency and reducing energy waste.
Unlock optimal compressor performance with the CAL-KIT! Featuring our CAL-EDGE-8 (click to learn more) data logger and a suite of precision sensors, this comprehensive auditing kit empowers you to swiftly identify leaks, optimize system performance, and reduce energy waste. This kit provides a complete solution for the compressed system audit.

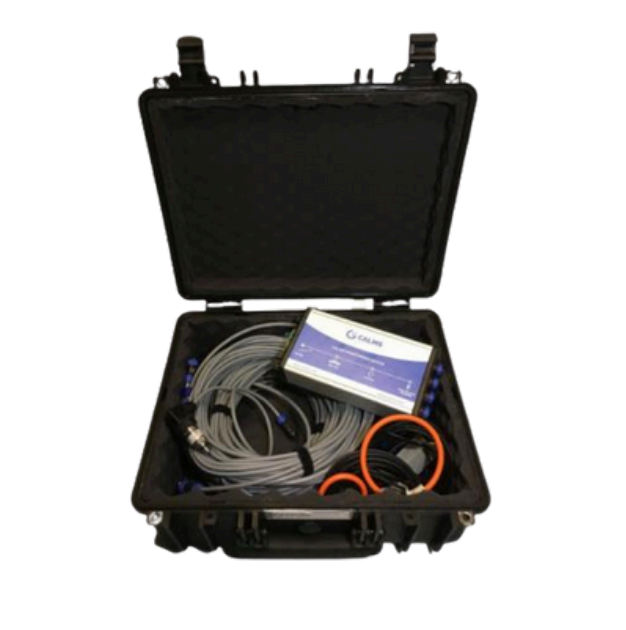

Features:
- Audit device CAL-EDGE-8 (supports up to 8 analog inputs and modbus TCP / RTU)
- 4x Rogowski CT coli 500A
- 1x Pressure sensor 0-150 psi
- All the necessary cables

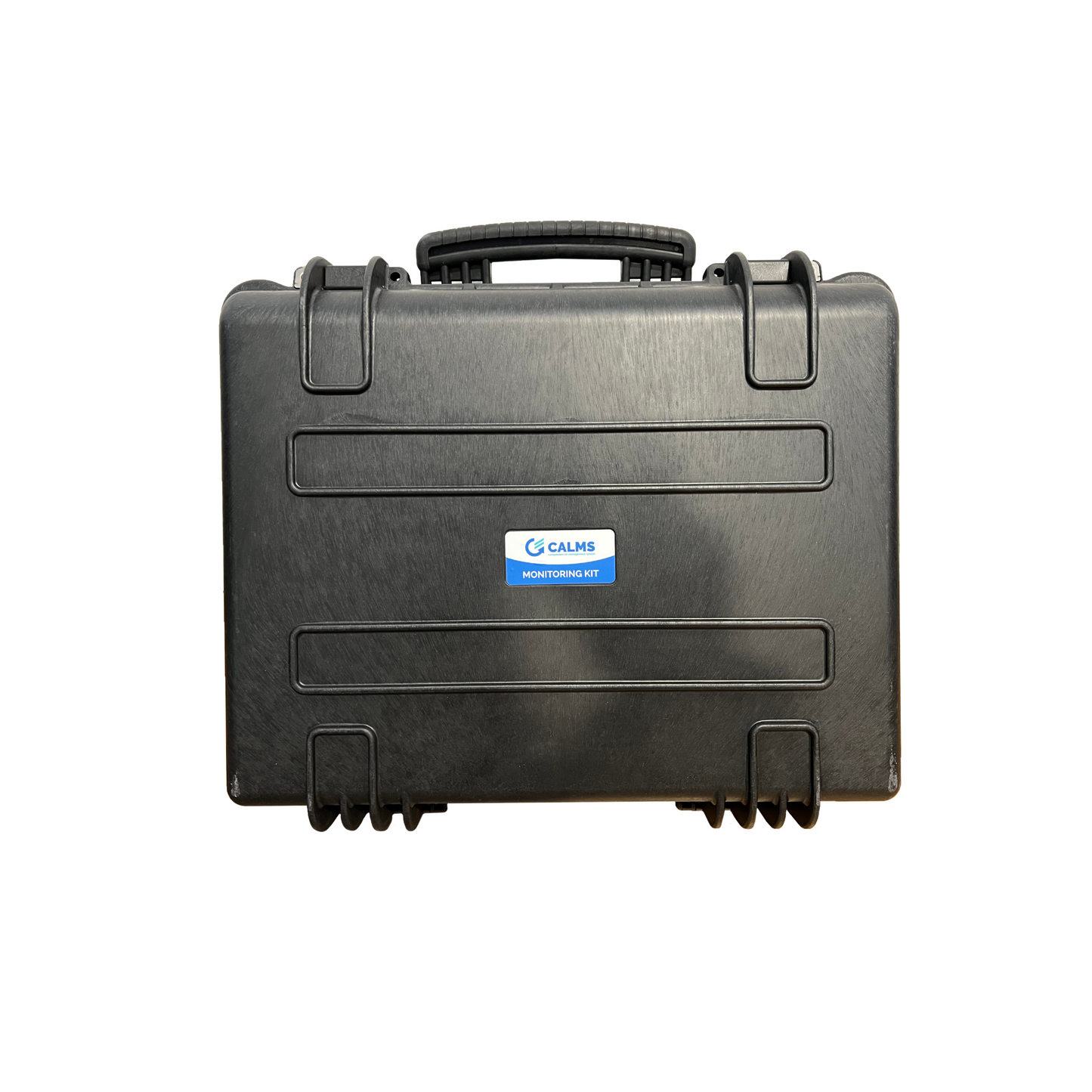

- All stored in an explorer case
Benefits:
- A comprehensive all-in-one solution for compressor system monitoring
- Comes with a data logger, multiple analog inputs, and sensors for broad leak detection
- The CAL-EDGE-8 data logger is a key component
- LTE 4G modem and Ethernet, ensures data is accessible in realtime, anywhere, anytime
- Connection and extension cables included in the kit make installation and configuration straightforward
- All components are safely stored and transported in a rugged Explorer case
- Contributes to significant cost savings. By enabling prompt, precise repairs, it optimizes system performance and reduces energy waste
- The kit's offerings are expanded with the addition of a free CALMS platform subscription
- Offers user-friendly tools for monitoring and controlling up to
five systems - The CAL-KIT streamlines auditing. It packs vital components like the data logger and sensors in one kit, centralizing the process
- Included is a CALMS platform subscription
SPECIFICATIONS (CAL-EDGE-8)
| Description | Remarks | |
|---|---|---|
| Hardware | Quad core Cortex-A53 (ARM v7) 64-bit | |
| Processor Speed | SoC @ 1.5GHz | |
| RAM | 1GB DDR2 RAM | |
| Protocol | MODBUS RTU, MODBUS TCP/IP, ADS, OPC UA, Database queries | Up to 20 sensors per one device |
| Interface | 1x 10/100 Ethernet adapter | |
| Analog inputs 4...20mA | 8 | Passive or active connection with internal 24Vdc, 12bit resolution, with standard connectors |
| RS485 | Standard: 1x | 2-wire RS485 |
| WEB Management | Yes | |
| Min logging interval | 1 sec | Configurable |
| CAL to CALMS web upload interval | 1 sec to 24 h | Configurable |
| Data Storage | eMMC 8 GB | |
| Cloud connection | Mobile 3G/4G / LAN | |
| Operating Range | 0°C - 50°C (32°F - 131°F) | |
| Power supply | 24VDC | Power adapter included. Recommended: 60W. Depends on sensor usage. |
| Cellular modem | LTE (LTE-M) | Depends on network coverage. |
| Antenna interface | Standard SMA interface | Antenna included |
| Size (mm) | H 56 x W 125 x L 250 mm | |
| Size (inches) | H 2.20 x W 4.92 x L 9.84 inches | |
| Weight | 865 g / 1.91 lb | |
| Materials | Enclosure: Aluminum | |
| Mounting | DIN rail or wall mounting | |
| EMC | EN 61000-6-2 / EN 61000-6-4 | |
| IP rating | IP54 | |
| Approvals | CE, UL |
